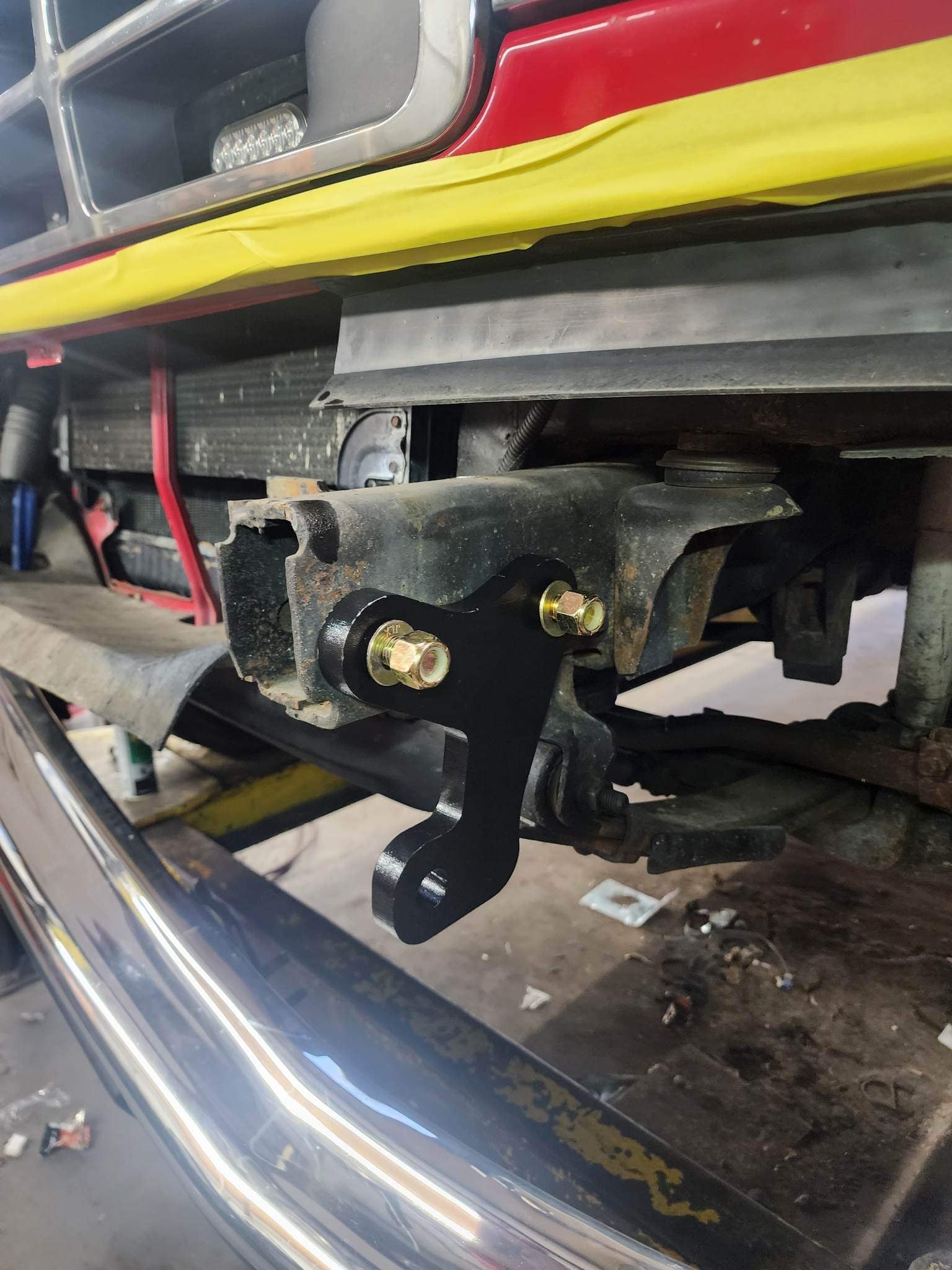

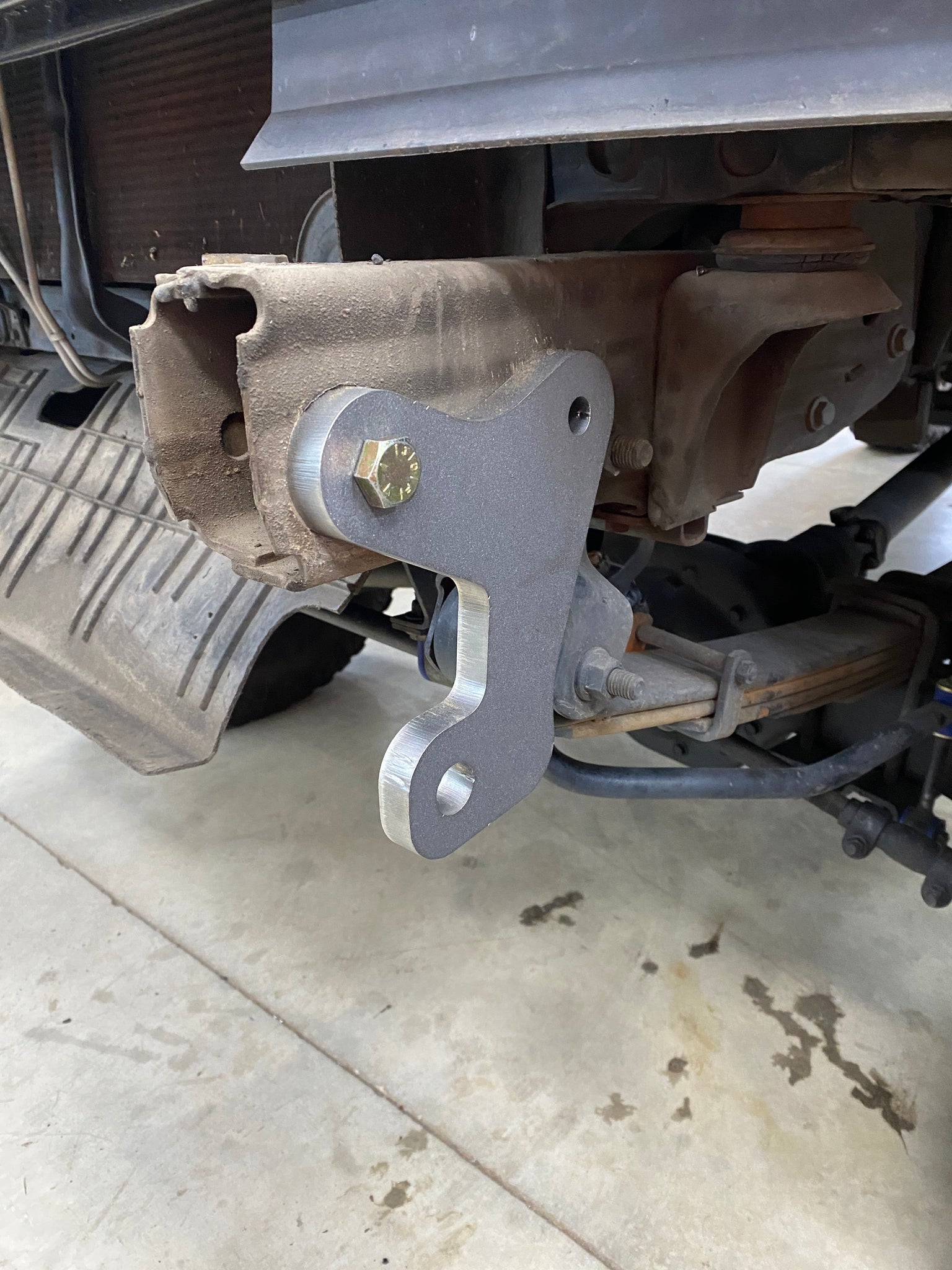

Pre-production non-powder coated version shown - production version shown will come in black texture powder coat
Please allow 2-3 weeks for shipping this new product

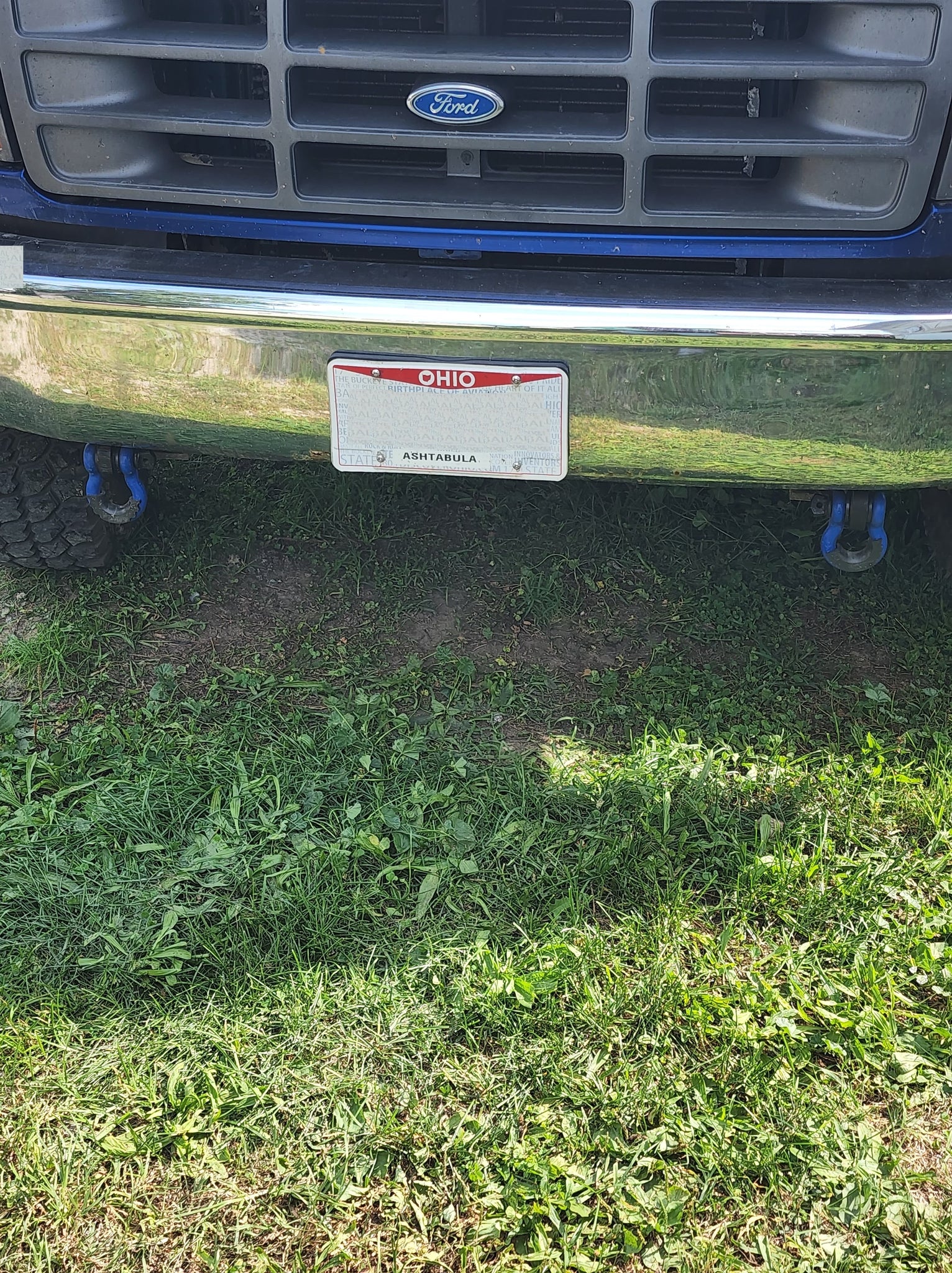

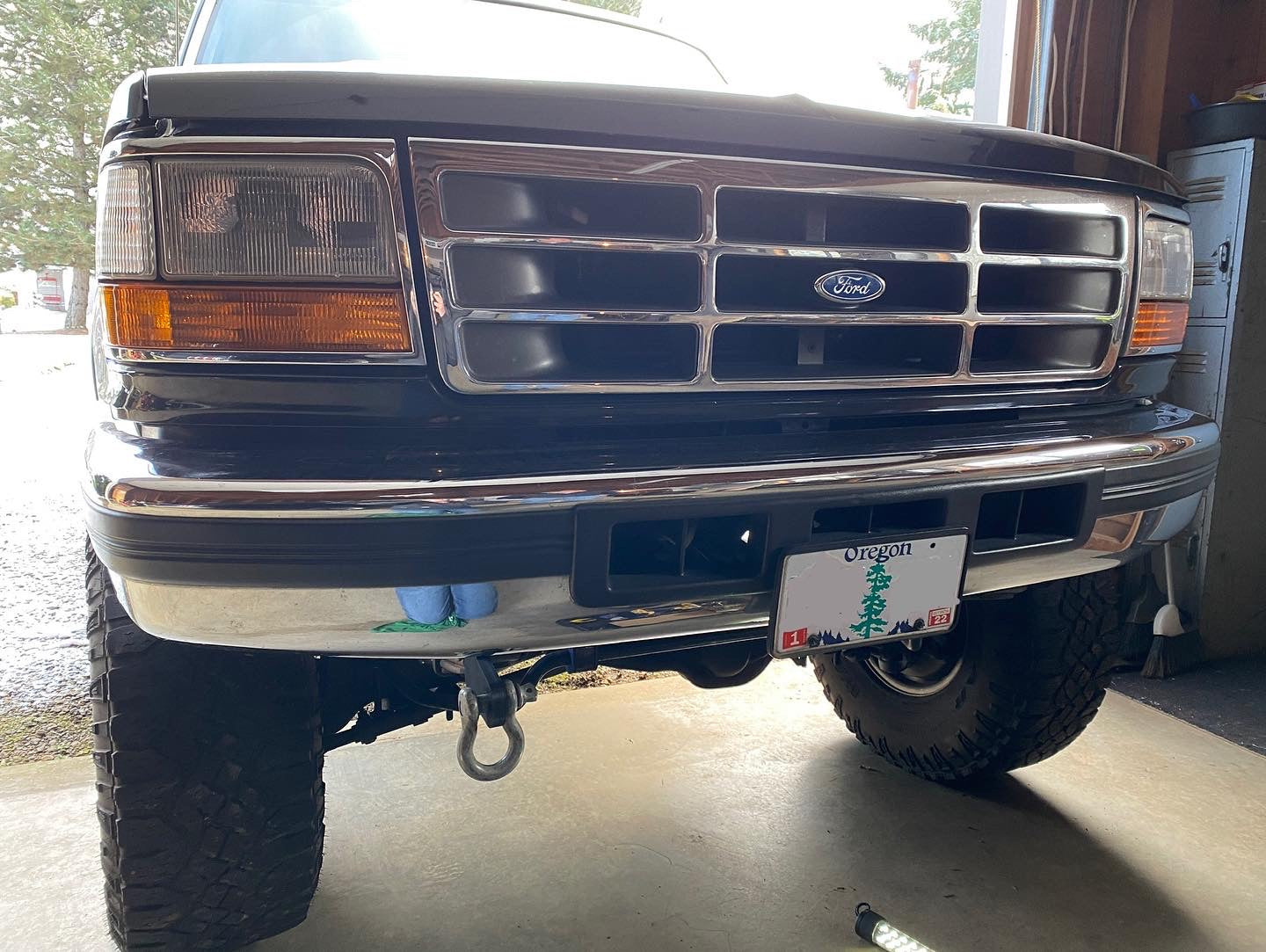

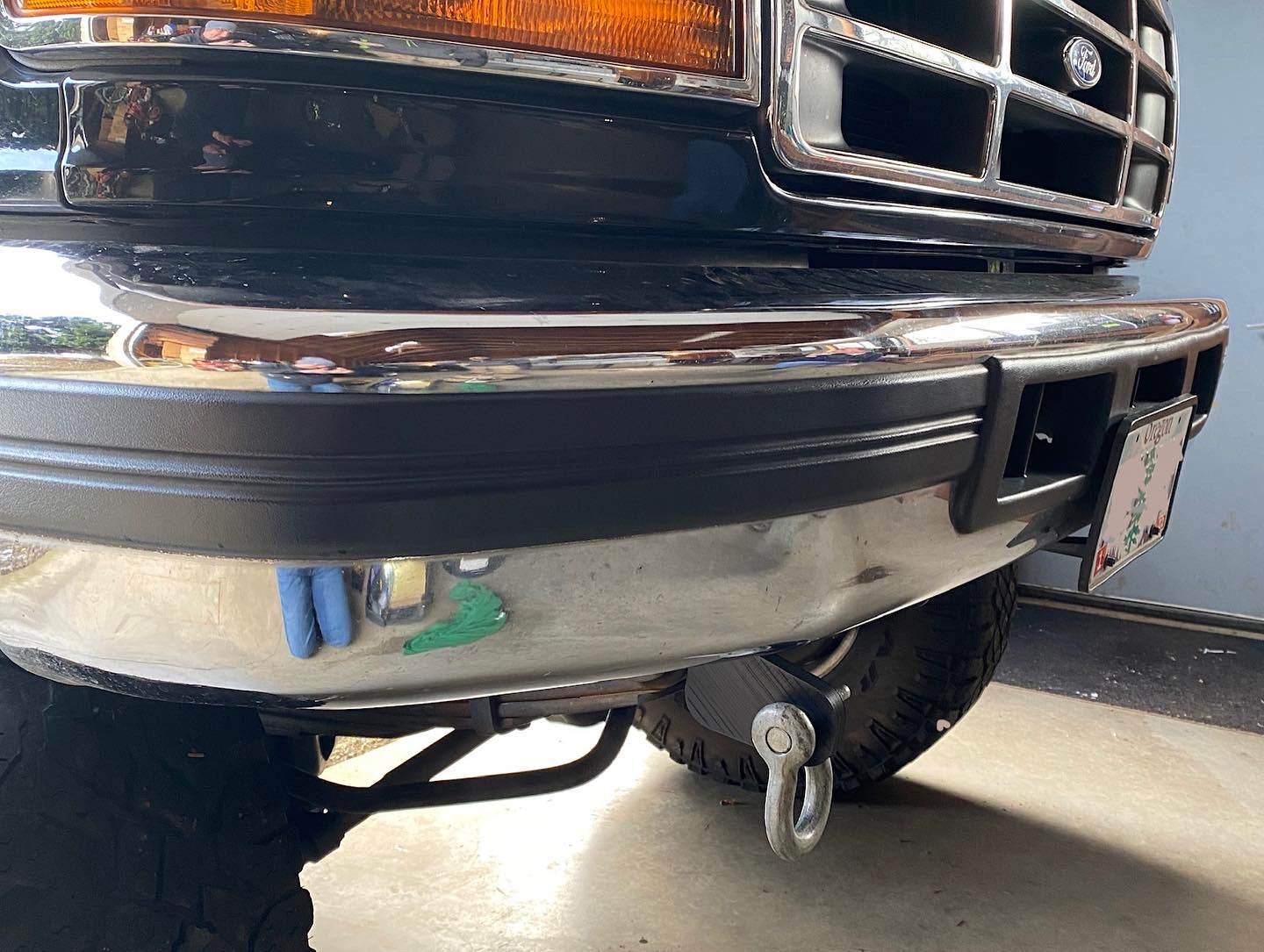

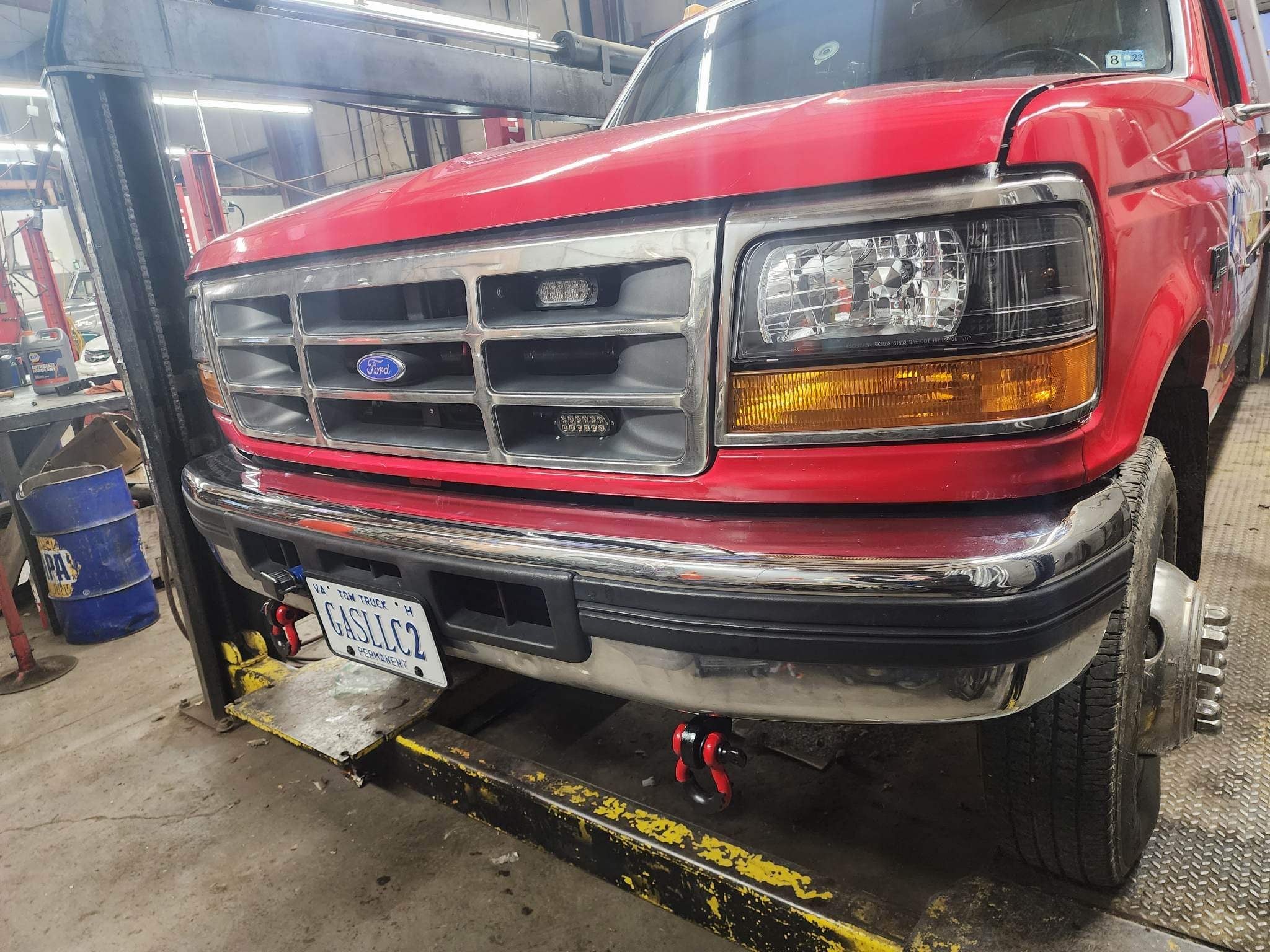

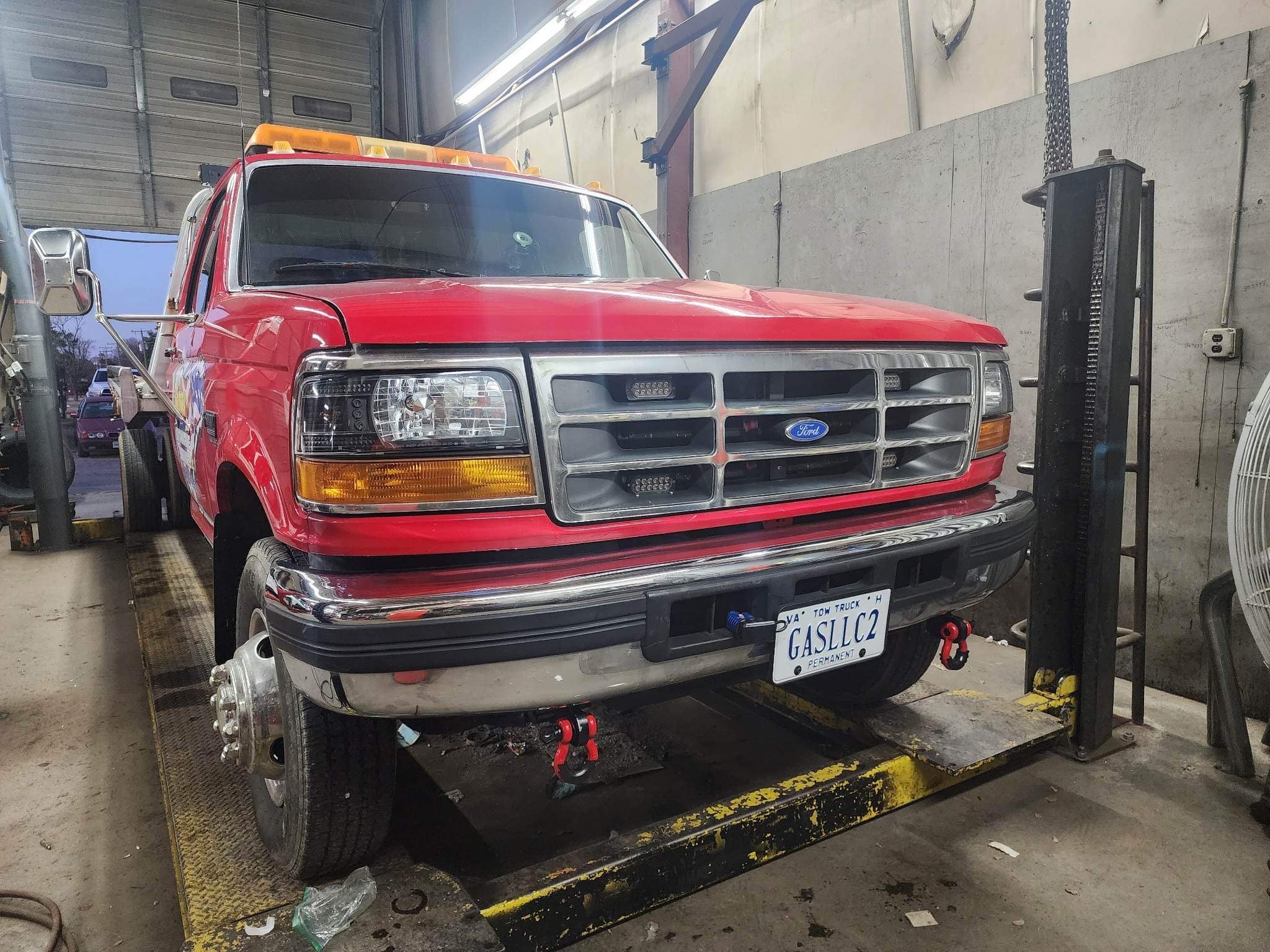

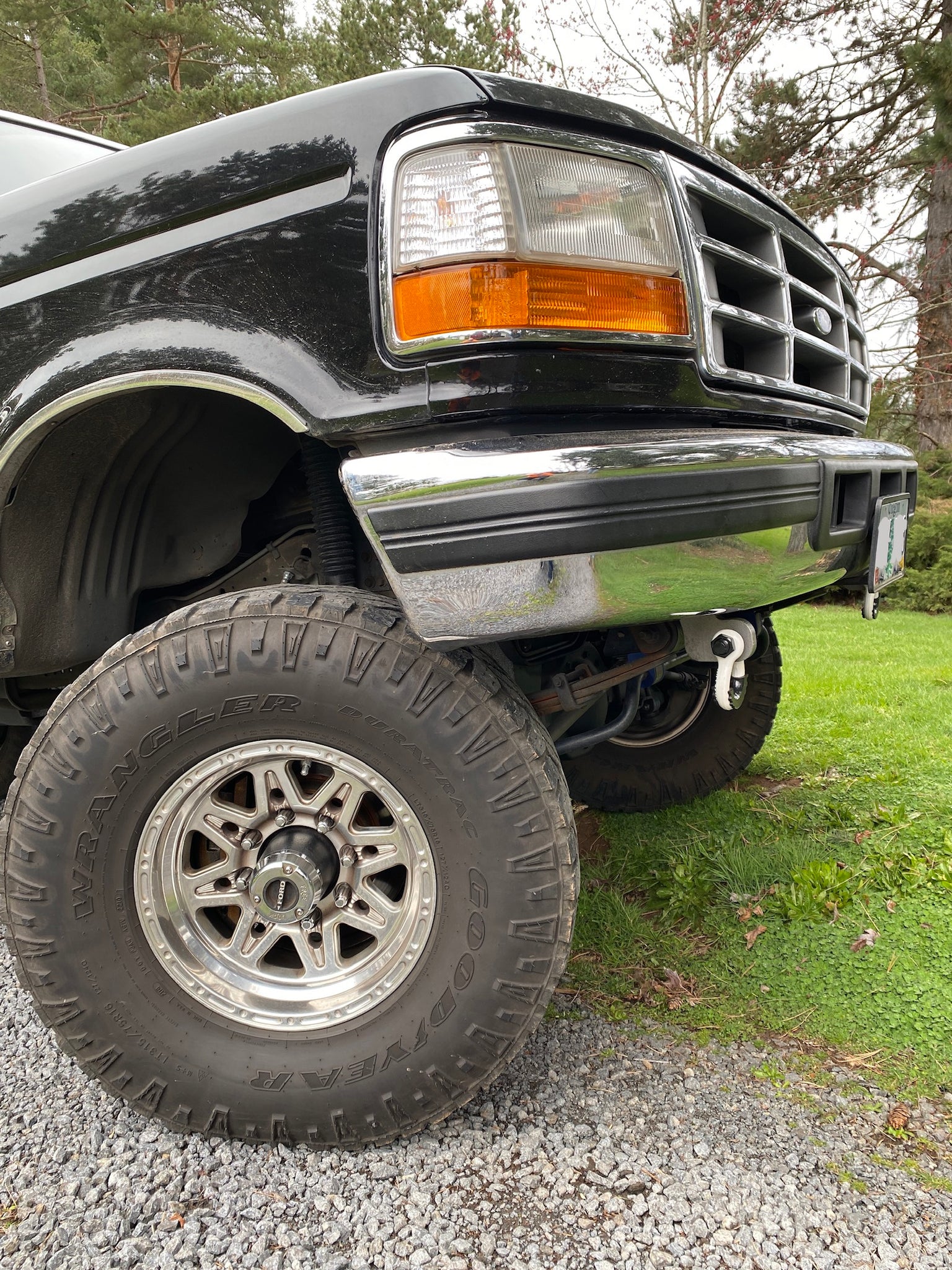

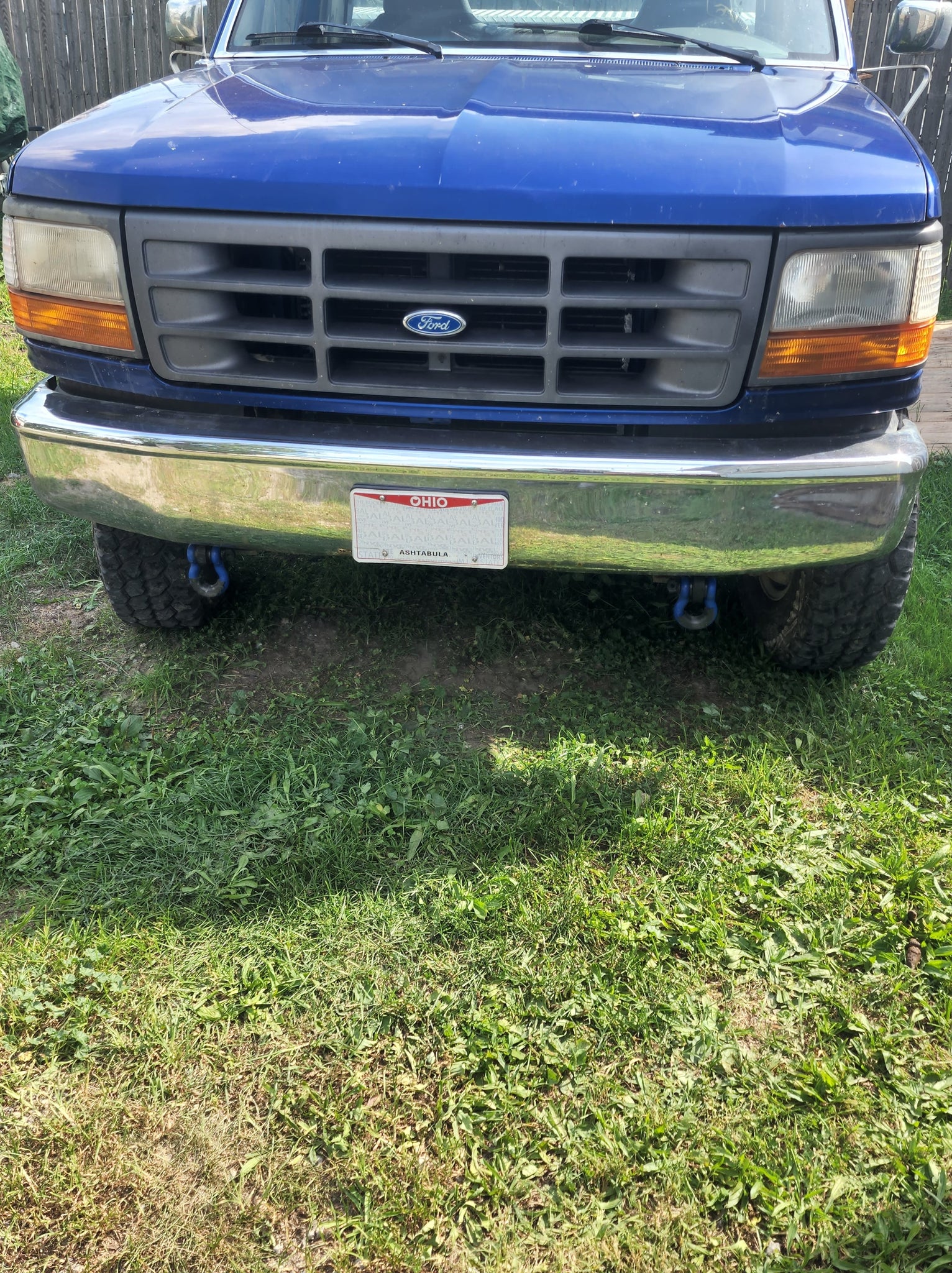

The Engineered Vintage Shackle Bracket bolts to the frame and provides a solid front tow point underneath the stock bumper for pulling / vehicle recovery while not compromising front bumper or frame looks or integrity.
Fits
1992-97 F250, F350
The 92-96/97 Ford Shackle Brackets each attach with (2) 5/8" diameter bolts & accept a shackle / Clevis with up to a 7/8" pin diameter.
Some trucks may require drilling 5/8” diameter holes in frame to mount these.
Kit includes:
- (2) 3/4" steel laser cut brackets in black powder coat finish
- (4) 5/8" x 2" long bolts
- (4) 5/8 washers
- (4) 5/8 nuts & lock washers (or lock nuts)

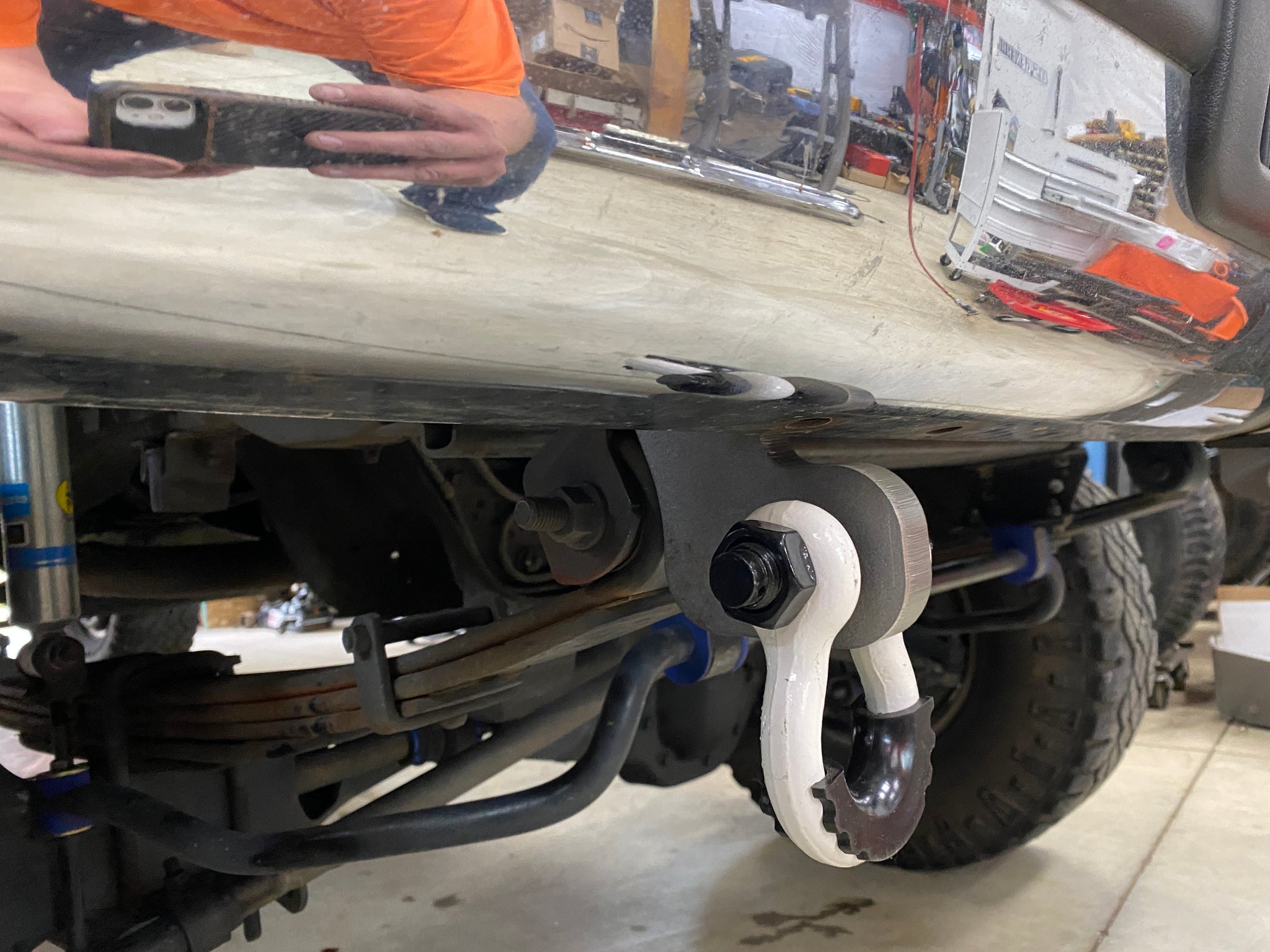

*Note that shackles are not included in our kits with the variety of options available on the market and to keep costs low.
We like the Ambull 3/4” shackle with cotter pin - available on Amazon in ~12 different color choices.
Engineering:
Laser cut from A-36 equivalent steel, with tensile failure point of 36,000 lbs / square inch or higher.
Grade 8 bolts of 5/8 diameter will fail at 40,000 lbs (in shear) or better per bolt
